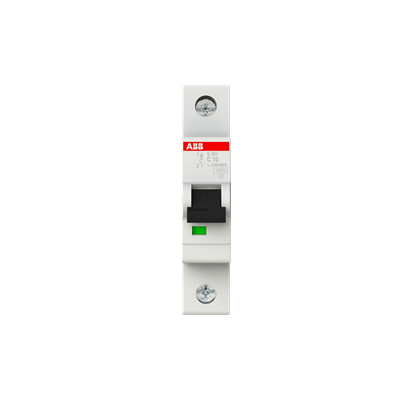

The ABB S201-C 1 Pole Miniature Circuit Breaker 10KA is designed for reliable protection of single-phase electrical circuits against overloads and short circuits. Offering a high breaking capacity of 10KA, it ensures superior safety for sensitive equipment in both residential and commercial applications. This compact and robust breaker is equipped with a thermal-magnetic trip mechanism for precise fault detection and rapid response.
Key Features:
- Type: 1 Pole Miniature Circuit Breaker
- Breaking Capacity: 10KA
- Trip Characteristic: C Curve (for protection against moderate overloads)
- Voltage Rating: 230/240V AC
- Current Rating: Available in multiple ratings
- Standards Compliance: IEC 60898-1, ensuring safety and reliability
- Compact Design: Space-efficient and easy to install
- Thermal-Magnetic Protection: Provides overload and short circuit protection
- Application: Ideal for residential, commercial, and light industrial applications
- Durability: High-quality construction for long-lasting performance
Specifications
Design
| | Product or component type | Miniature Circuit Breaker (MCB) |
| | Complementary | Provided equipment |
|
| | Mounting | DIN Rail Mounting (EN 60715) |
| | Terminal Type | Screw Clamp Terminals |
|
| Torque for Terminals | 2.0 Nm (recommended) |
| | Mechanical Life | ≥ 20,000 operations |
| | Electrical Life | ≥ 10,000 operations |
|
Electrical
| Rated Current (In) | 6A, 10A, 16A, 20A, 25A, 32A, 40A, etc. |
| | Rated Voltage (Ue) | 230/400V AC |
| |
| Breaking Capacity (Icn) | 10 kA |
| | Tripping Characteristics | Type C (5-10 x In) |
| | Isolation Function | Yes (visible contact gap) |
|
Environmental
| Operating Temperature | -25°C to +55°C |
| | Storage Temperature | -40°C to +70°C |
| | Humidity | ≤ 95% (non-condensing) |
|
| Pollution Degree | 2 (as per IEC 60664) |
| | Altitude | Up to 2000 meters above sea level |
| |
Physical
Certifications
| International Standards | IEC 60898-1, IEC 60947-2 |
| | Certifications | CE, CCC, RoHS compliant |
| |
Applications
| | Commercial and office spaces | Yes |
| | Industrial control panels | Yes |
|
| | Power distribution boards | Yes |
| |
