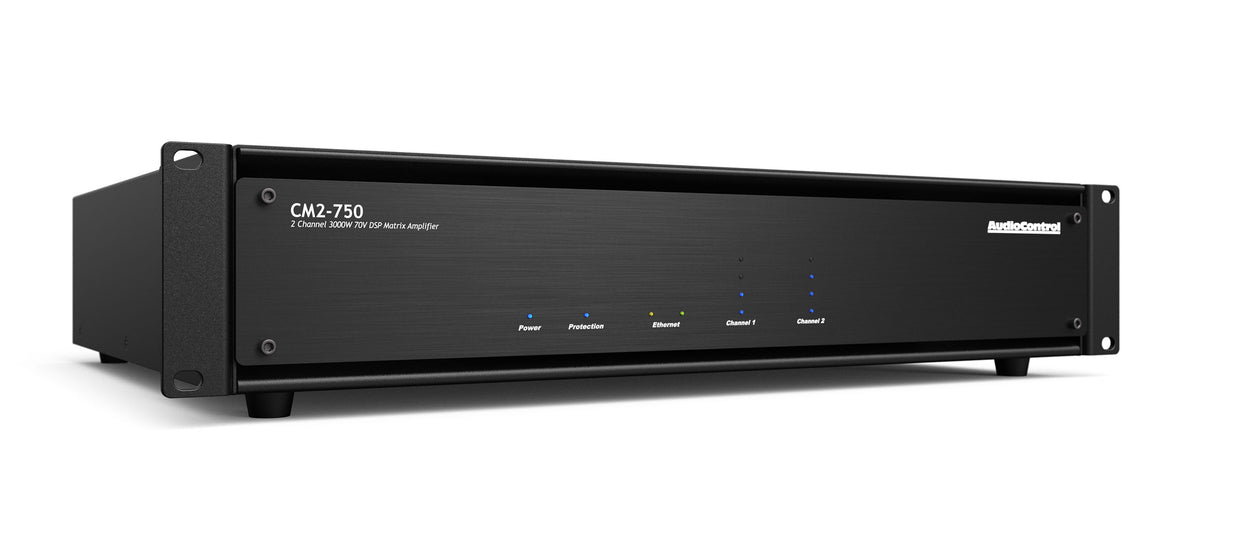

2-Channel High Power Dual Mode 70V DSP Amplifier
The 2-Channel High Power Dual Mode 70V DSP Amplifier by AudioControl is designed to deliver high power and superior audio quality for large-scale audio systems. Whether you’re setting up an outdoor audio system or a commercial A/V installation, this amplifier offers the flexibility and performance you need. With advanced DSP control and signal matrixing, you can precisely tailor the sound to any environment. It supports balanced/unbalanced analog, microphone, or digital inputs, and outputs can be configured in mono or stereo for maximum versatility. Plus, remote setup and diagnostics via an IP web interface make system management effortless.
Key Features
- High Power Output:
- 2 Channels x 750W at 70/100V or 2Ω/4Ω
- 2 Channels x 625W at 8Ω
- 1500W Bridged Power at 70/100V or 4Ω/8Ω
- Advanced DSP Control:
- Downloadable speaker optimization profiles
- Programmable graphic & parametric EQ with user memories
- Subsonic filter and programmable crossover for subwoofer applications

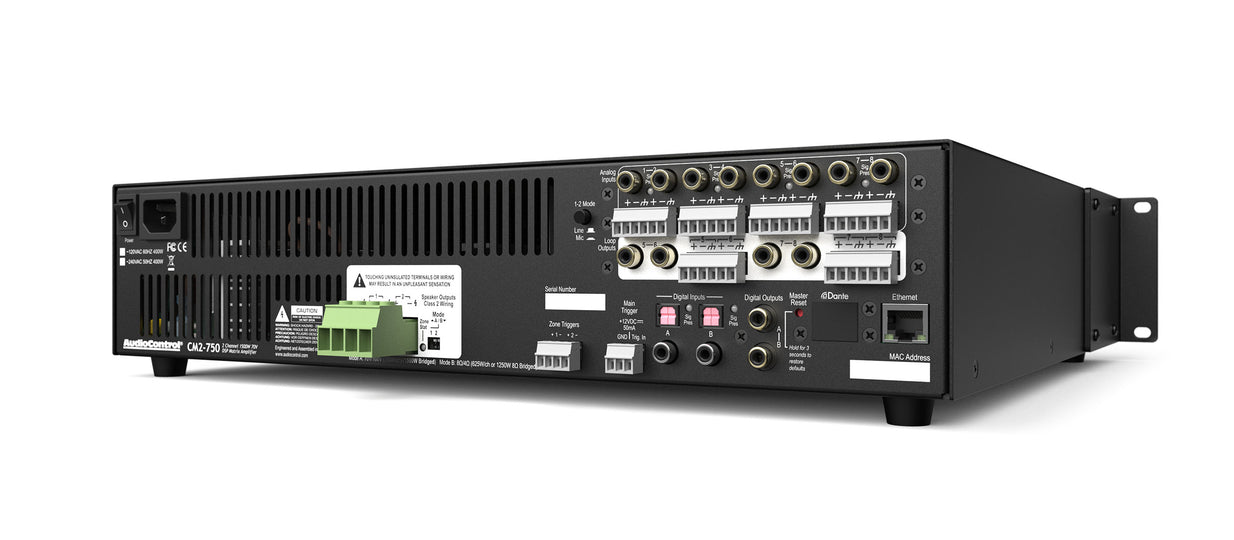

- Flexible Connectivity:
- Balanced analog Euro-block inputs
- Single-ended RCA inputs with loop outputs
- Digital coaxial/TOSLINK signal sensing inputs
- Dual coaxial digital bus outputs
- Remote Management:
- Ethernet port for status monitoring, source switching, and 12V trigger control
- Built-in matrix for routing analog or digital inputs to any zone
- Protection & Reliability:
- AudioControl LightDrive™ anti-clipping speaker protection
- Digital signal sense for automatic operation
This 2-Channel High Power Dual Mode 70V DSP Amplifier is the ultimate solution for professional-grade audio performance, offering unmatched power, flexibility, and control for any installation.
Datasheet
For ACP-CM-2750
6.07 Mb PDF
Specifications
Design
| | Product or component type | High Power DSP Amplifier |
| | Complementary | Speaker Connectors, Remote Connector, Power Cord, Manual, Warranty |
|
| Inputs | 8 Balanced, 8 Unbalanced RCA, 2 Digital Coaxial/TOSLINK |
| | Outputs | 2 Amplifier Channels, 4 Balanced Preamp, 4 Unbalanced RCA, 4 Digital Coax Loop |
| | Network Connection | 10Base-T Ethernet TCP/IP |
|
| Remote Power Trigger | +12 VDC or Dry Contact Closure |
| | Communication Protocol | HTTP or Telnet |
| | Input Sensitivity | 1 Vrms for full output |
|
Physical
| Dimensions | 17” W x 15.5” D x 3.5” H (2 U) |
| | |
| Power Output (70 V/100 V) | 750 W per channel |
| | Power Output (70 V/100 V Bridged) | 1500 W |
| | Power Output (8 Ω/4 Ω) | 625 W per channel |
|
| Power Output (8 Ω Bridged) | 1250 W |
| | |
Material
| Material | Metal/Steel (Assumed based on typical amplifier construction) |
| | < |
