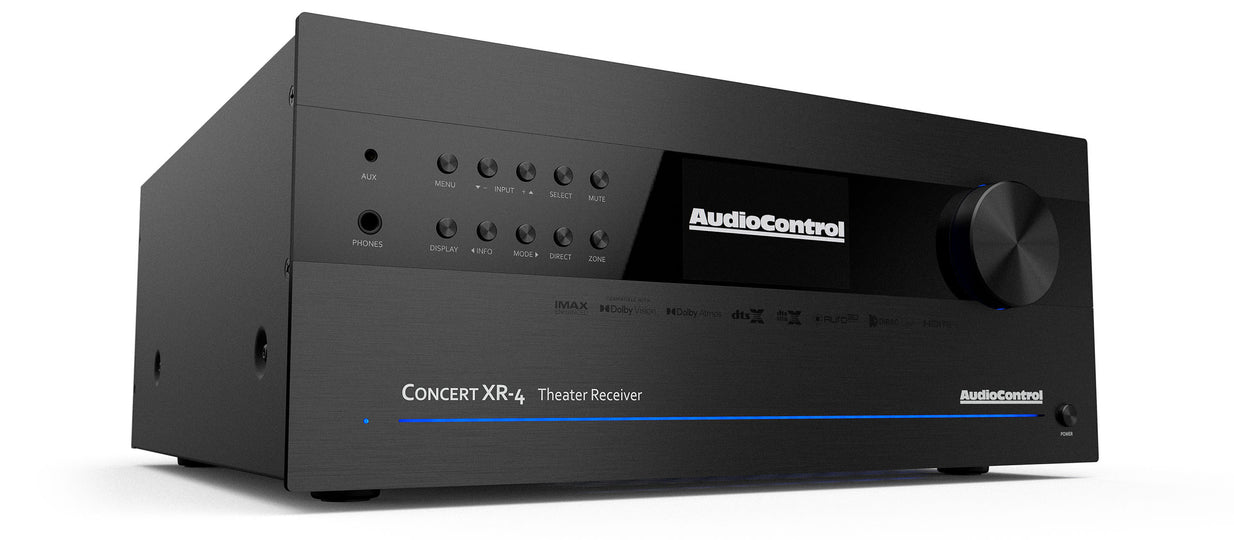

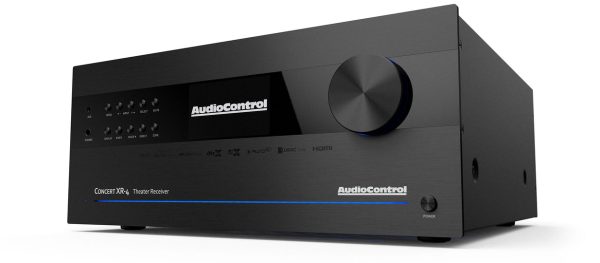

AudioControl’s high-performance AV receivers enable home theater specialists and integrators to create systems that deliver new levels of precision, power, and control. The Concert XR-4 supports the most sought-after immersive surround formats, such as Dolby Atmos, Auro-3D, DTS:X, and IMAX Enhanced, with 12-channels of unbalanced outputs including four user-configurable outputs. The Concert XR-4 offers a full complement of inputs for connection to the latest audio/video components.
The new Concert XR-4 houses the very latest in audio and video processing technology, featuring Dirac Live® room correction to overcome acoustic anomalies in any space and ESS SABRE PRO DACs that ensure unprecedented levels of detail and clarity along with earth-shaking, authoritative bass response. Seven amplified channels deliver 65 watts per channel at 8 ohms and (4 ohm stable).
Enthusiasts will enjoy intuitive app-based control, Google Chromecast®, Apple® AirPlay 2, Roon Ready, Bluetooth with aptXHD® support, Wi-Fi streaming connectivity options, and integrated web-based configuration.
All of this outstanding technology has been wrapped quite elegantly within a beautifully designed chassis, distinguishing AudioControl’s Immersive AV Receiver lineup from any other solution.
Key Feature
- 7.1.4 decoding for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro-3D
- 4K UHD / HDMI 2.0b and HDCP 2.2
- ES9026PRO SABRE audiophile DACs (124 dB of dynamic range)
- Dirac Live® & Dirac Live® Bass Control (Single Subwoofer)
- Class AB power amplification
- 7 channels of high power Class AB amplification
- Supports Dolby Vision, HDR10+, HDR10, and HLG
- 4 user-assignable output channels
- 7 HDMI inputs / 3 HDMI outputs including Zone 2 (eARC compatible)
- IP, IR, RS232, and Wifi control
- Apple® AirPlay 2
- Google Chromecast built-in streaming support
- Bluetooth® with aptXHD® support
- Roon Ready and supports MQA
Datasheet
For CONCERT-XR-4
6.06 Mb PDF
Specifications

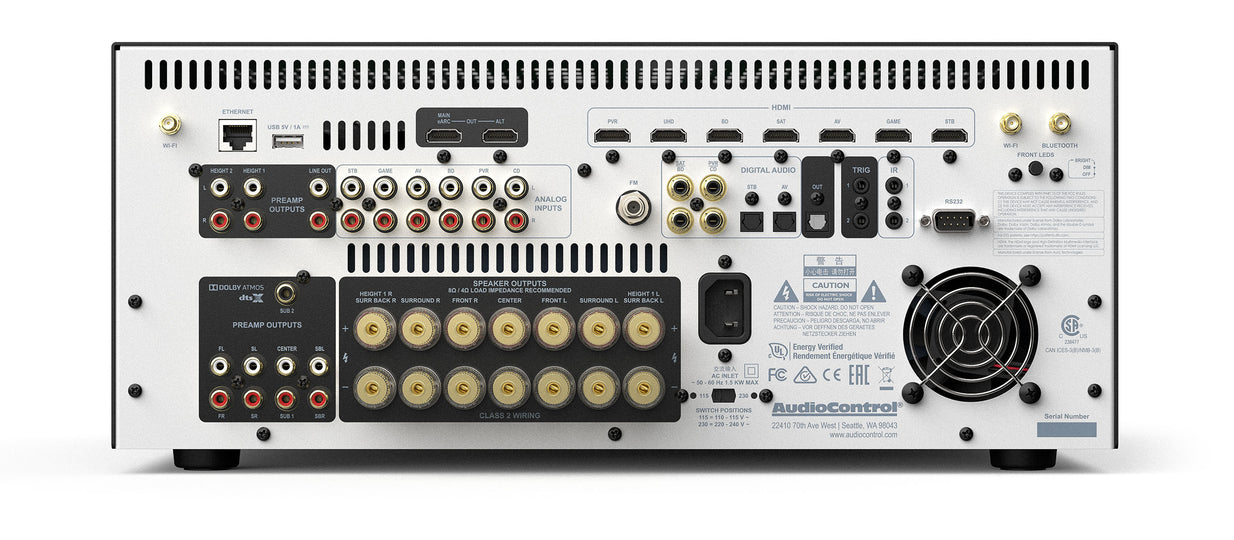

Inputs
| Audio Inputs | 7 HDMI, 6 RCA Phono, 4 Coax SPDIF, 2 TOSLINK |
| | Nominal Sensitivity | 1 V, 2 V, 4 V (user selectable) |
| |
| Signal to Noise (A-wtd ref 100W) | 100 dB/110 dB |
| | Frequency Response | 20 Hz to 20 kHz ± 0.2 dB |
| | Video Inputs | 7 HDMI (HDMI 2.0b / HDCP 2.2) |
|
General
| Power Consumption (Standby) | <0.5W |
| | Power Consumption (Idle, Typical) | 90W (340 BTU/hour) |
| | Power Consumption (Maximum) | 1500W (5200 BTU/hour) |
|
Outputs
| | Continuous Power Output, per channel, 8Ω / 4Ω | 65W/65W |
| |
| Preamp Audio Outputs | 12 channels (unbalanced RCA), 1 TOSLINK |
| | Nominal Output Level | 1 Vrms (max. 5 Vrms) |
| |
| THD+N (20 Hz – 20 kHz) | -100dB |
| | Main Video Outputs | Dual (2) HDMI (eARC support) |
| |
Weight & Dimensions
| Dimensions (including terminals and feet) | 17” W x 17.5” D x 7.3” H (4 U) |
| | Weight | 40.3 lbs. (18.3 kg) |
| |
Control
In the Box
| | HTR-3 Remote with 2 x AAA Batteries | 1 |
| |
| Wi-Fi/Bluetooth Antennas | 3 |
| | |
| | |
