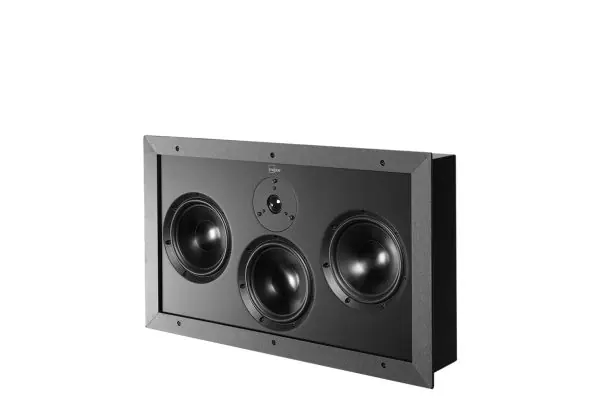

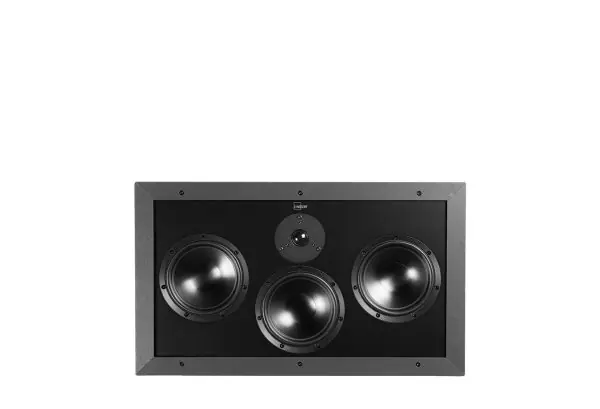

Lyngdorf D-500 Center – High-Performance In-Wall Speaker for Home Theaters
The Lyngdorf D-500 Center is a premium in-wall speaker designed for immersive home theater setups. With its closed compound cabinet, high-performance drivers, and dual passive woofers, this speaker delivers crystal-clear dialogue and powerful sound reproduction. Whether you’re watching movies or listening to music, the Lyngdorf D-500 Center ensures exceptional clarity and balance, making it an ideal choice for custom installations.
Key Features:
- High-performance in-wall speaker for home theater systems
- 28mm soft dome tweeter for precise high frequencies
- 175mm midrange driver with aluminum cone for accurate sound
- Dual 175mm passive woofers for deep and controlled bass
- Closed compound cabinet minimizes resonance and enhances sound quality
- Mounts flush inside walls for a seamless, space-saving setup
- 88dB sensitivity and 100W power handling for powerful performance
- Premium build quality ensures long-lasting durability
Specifications
Design
| Model | Lyngdorf D-500 Center |
| | Product type | 2-way speaker with passive woofers |
| |
| Enclosure | Closed MDF cabinet |
| | | Power handling | 100 W (IEC) |
|
Audio
| Tweeter | 28 mm / 1” soft dome |
| | Midrange driver | 175 mm, 38 mm voice coil, aluminum cone, vented magnet |
| | Passive woofers | 2 x 175 mm, aluminum cones |
|
| Frequency range | 50 – 22,000 Hz (-3 dB) |
| | | Sensitivity | 88 dB (2.83V/1m) |
|
Physical
| Dimensions with grill (W x H x D) | 646 x 388 x 109 mm / 25.4 x 15.3 x 4.3 inches |
| | Cut-out dimensions (W x H x D) | 618 x 360 x 104 mm / 24.3 x 14.2 x 4.1 inches |
| |
