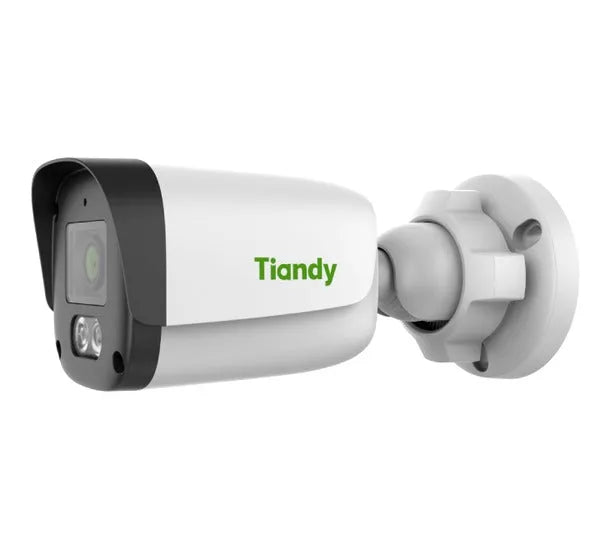

Tiandy TC-C321N AK Series 2MP Bullet Camera, engineered for high-definition video and durable performance. Featuring a 4.0mm fixed lens, this camera captures clear footage in Full HD 1080p resolution. With H.265+ compression, it reduces bandwidth and storage usage without compromising quality. The built-in microphone allows real-time audio recording, while Smart IR LEDs offer up to 30 meters of night vision. Housed in a robust plastic and metal casing with IP67 weatherproof protection and PoE support, this bullet camera is ideal for both indoor and outdoor security applications.
Datasheet
For TC-C321N/4mm
1.7 Mb PDF
Specifications
General
| | |
| Resolution | 2.0MP (1920×1080) |
| | Min. Illumination | 0.04Lux (Color), 0Lux with IR (B/W) |
| | Shutter Time | 1s ~ 1/100000s |
|
| Day & Night | ICR (Infrared Cut Filter) |
| | |
Lens
Illuminator
| | IR Distance | Up to 30 meters |
| |
Compression Standard
| Video Compression | H.265+, H.265, H.264 |
| | Video Bit Rate | 32Kbps ~ 4Mbps |
| |
| | |
| Main Stream | 1080p / 720p / D1 / VGA @ 30fps |
| | Sub Stream | CIF / QCIF / VGA @ 30fps |
| |
| | |
| | White Balance | Auto / Semi-auto / Manual |
| |
| | |
| | |
Other Specifications
| Power Supply | PoE (IEEE 802.3af), Max 3W |
| | |
| Operating Temperature | -30°C ~ 60°C |
| | Humidity | 0–95% RH (non-condensing) |
| | Network Protocols | HTTP, TCP/IP, UDP, DHCP, DNS, NTP, IPv4, ONVIF |
|
| Interface | RJ45 (10/100M adaptive) |
| | Dimensions | Approx. 140×60×60mm |
| | Weight | Net: 0.15kg, Gross: 0.2kg |
|
