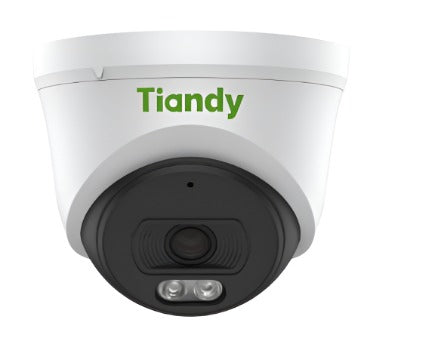

The Tiandy TC-C34XN Spark Series IPC 4MP WiFi Turret Camera delivers high-definition surveillance with its 1/3″ image sensor. It ensures clear images with a minimum illumination of 0.02 Lux for color and 0 Lux with IR. The camera features a 2.8mm fixed lens, offering a wide field of view of 102.8° horizontally. Equipped with dual IR-cut filters for day and night functionality, it provides reliable night vision up to 30 meters. The camera supports advanced video compression formats (S+265/H.265/H.264) and digital wide dynamic range (DWDR) for enhanced image quality. Its robust design includes audio compression (G.711A/U) and flexible angle adjustment, making it a versatile and dependable choice for any security setup.
Key Features
- Metal+plastic housing
- Up to 2560×1440@20fps
- S+265/H.265/H.264
- Smart IR, IR Range 30m
- Built-in Mic
- Operating Conditions -30°~60°, 0~95% RH
- POE
Datasheet
For TC-C34XN-I3/E/Y-2.8mm
713.93 Kb PDF
Specifications
Design
| | | Min. Illumination | Color: 0.02Lux@(F2.0, AGC ON), B/W: 0Lux with IR |
|
| Shutter Time | 1s to 1/100,000s |
| | Day & Night | Dual IR-cut filter with auto switch (ICR) |
| |
| | Angle Adjustment | Pan: 0~340°, Tilt: 0~75°, Rotate: 0~360° |
| |
| | | Aperture Range | F1.6, Fixed |
|
| Field of View | Horizontal: 102.8°, Vertical: 57.6°, Diagonal: 117.8° |
| | | Observation Distance | 15.9m |
|
| | Identification Distance | 4.0m |
| |
| | |
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H |
| | Video Bit Rate | 32Kbps~6Mbps |
|
| Audio Compression | G.711A/G.711U |
| |
