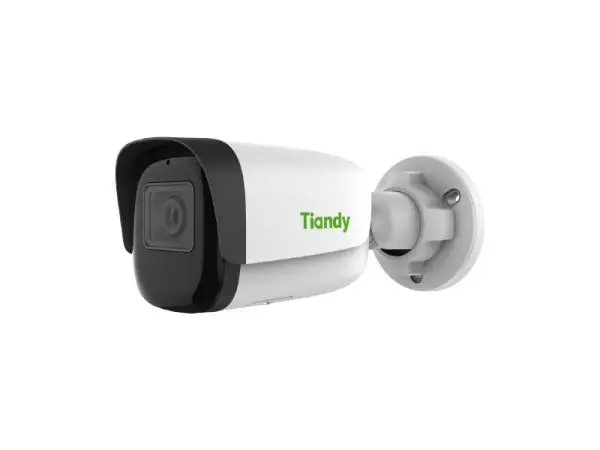

The Tiandy TC-C35WS Lite Series 5MP WiFi Bullet Camera is a high-quality security camera designed for excellent performance in various lighting conditions. Featuring a 1/2.7″ CMOS image sensor, it ensures clear images with a minimum illumination of 0.002 Lux for color and 0 Lux with IR for black and white. The camera has a 2.8mm fixed focal lens, providing a wide 109° horizontal field of view and supporting a wide dynamic range of 120dB. With robust night vision capabilities, it offers an IR range of up to 50 meters and a white light range of 15 meters. Multiple video compression options (S+265/H.265/H.264) and audio compression formats (G.711A/U, ADPCM_D) make it a versatile choice for reliable and detailed surveillance.
Datasheet
For TC-C35WS 15/E/Y/M/ 2.8mm
2.31 Mb PDF
Specifications
Design
| | | Min. Illumination | Color: 0.002Lux@ (F1.6, AGC ON), B/W: 0Lux with IR |
|
| Shutter Time | 1s to 1/100,000s |
| | Day & Night | Dual IR Cut Filter with Auto Switch |
| |
| Angle Adjustment | Bracket, Pan 0~360°, Tilt 0~75°, Rotate 0~360° |
|
| | |
| | Field of View (FOV) | Horizontal: 94.7° (2.8mm)/80° (4mm) |
|
| | |
|
| Compression Standard | S+ 265/H.265/H.264 |
| | Video Compression | S+265/H.265/H.264 |
|
| Video Bit Rate | 32Kbps~6Mbps |
| | Audio Compression | G.711/G.711U/ADPCM |
| |
|
| Main Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288), NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
| | Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288), NTSC: 30fps (704×480, 704×240, 640×360, 352×240) |
|
|
| Image Setting | Saturation, brightness, contrast, sharpness, adjustable by client software or web browser |
| | Image Enhancement | BLC/3D DNR/HLC |
| |
| OSD | 16×16, 32×32, 48×48, 64×64, adaptable size, Letters such as Week, Date, Time, Total 3 Regions |
| |
| Privacy Mask | Yes, 4 regions |
| |
